400KG 200mm-800mm HDPE Pipe Production Line 380V 50HZ
1 set
MOQ
Negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: YILI
Certification: CE ISO
Model Number: 200mm-3000mm HDPE winding pipe extrusion line
High Light:

800mm hdpe pipe production line

,

200mm hdpe pipe production line

,

50HZ plastic pipe extrusion line

Payment & Shipping Terms
Packaging Details: Film package
Delivery Time: 30 days
Payment Terms: T/T, Western Union
Supply Ability: 30 sets per month
Specifications
Application: PIPE
Plastic Processed: PE, HDPE
Max Capacity(kg): 400-800
Pipes With Diameter: 200mm To 3000mm
Applicable Industries: Highway, Municipal Construction, Uptown, Playground, Square, Mine, Bridge, And Agriculture
Voltage: 380V 50HZ 3Phase(Customized)
Product Description

200mm-3000mm HDPE winding pipe extrusion line



Introduction



Absorbing advanced foreign technology, YILI Machinery has designed and developed Large Diameter Winding HDPE Pipe Production Line. Our extrusion line can produce pipes with diameter from 200mm to 3000mm. These durable pipes can replace the common steel pipes and concrete pipes in drainage system. According to different purpose, there are four hardness degree, and the Max. ring stiffness can attach 16KN/m2. It is suitable for the sour or alkali liquid below 10%. This kind of pipes offer corrosion resistance, light weight, long service life (50 years). The pipes are widely used as sewer in highway, municipal construction, uptown, playground, square, mine, bridge, and agriculture etc.



Technical Specification

Model Pipe Diameter (ID)
(mm)
Max Capacity
(kg)
Installation Power
CHR800 200mm-800mm 400 283
CHR1200 400mm-1200mm 500 335
CHR1600 800mm-1600mm 600 340
CHR1800 800mm-1800mm 600 445
CHR2200 1000mm-2200mm 700 500
CHR3000 1600mm-3000mm 800 670



Tech Features & Advantages

l The pipe is widely used for water drainage and sewage in many fields, such as municipal construction, residential districts, highways and bridges, etc

l The first extruder produce rectangular pipe into winding forming machine , the second extruder produce plastic bar, then the plastic bar is pressed on the rectangular pipe and winding pipe comes out. Outside and inside of winding pipe is smooth and neat

l It adopts spiral die head and two extruder charging, realizing spiral rotational forming

l The advanced PLC computer control system makes it easy to operate. It’s stable and reliable

l With different design of profile tube it can produce pipes of different ring stiffness that adapt to different conditions and fields

l High efficiency single screw extruder (using granule material) and energy-saving twin-screw extruder (using powder or granule material) for your choice

l A complete range of specification, pipe range: ID200mm - ID3000mm



Product detailed pictures

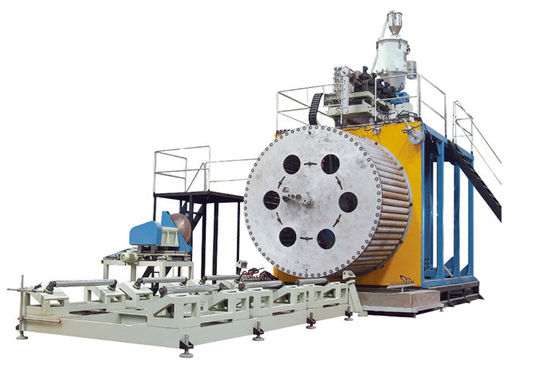

YILI succeeded to produce Winding pipe machine with 3000mm ID in 2009.

400KG 200mm-800mm HDPE Pipe Production Line 380V 50HZ 0



The winding pipe connection is the key important part when people want to invest such kind of pipes in use, YILI self-developed winding pipe welding machine which give people a best solution for welding , especially for big pipe onsite construction.

400KG 200mm-800mm HDPE Pipe Production Line 380V 50HZ 1
