5m/Min SJ90/33 PVC Pipe Extrusion Line 110-450mm PPR
1 set
MOQ
Negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: YILI
Certification: CE ISO
Model Number: 16-1600mm High speed HDPE pipe Extrusion line
High Light:

SJ90/33 PVC Pipe Extrusion Line

,

5m/Min PVC Pipe Extrusion Line

,

450mm plastic pipe making machines

Payment & Shipping Terms
Packaging Details: Film package
Delivery Time: 30 days
Payment Terms: T/T, Western Union
Supply Ability: 30 sets per month
Specifications
Usage: Water Supply, Water Sewage, Gas Supply And House Water
Plastic Processed: PE, PP, HDPE, HDPE/PP, PE/PP, LDPE
Application: PIPE
Raw Materials: PE ( Polyethylene) / HDPE / LDPE/PPR/PERT
Type: Acemech Standard Or Customized
Motor: SIEMENS PLC Control
Product Description

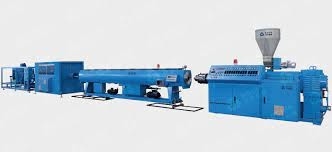

PVC Pipe Extrusion Line





Introduction



  • Extruder- Material is pushed through with turning screw causing friction and heating the material through screen changer/nozzle.
  • Vacuum Tank- Sizes pipe but keeps it from collapsing. Maintains desired form while cooling off mold with sprayers.
  • Belt Puller- Transports material from Vacuum tank to saw.
  • Cutoff Saw- Cuts the formed product into desired length.
  • Coilers- Spinning arms in a wheel shape that supports fast continuous extrusion.
  • Corrugators-Passes mold past nozzle while still remaining connected to extruder.

Technical Specification



33D Series Classical Production Line:
Model OD (mm) Extruder Max. Output (kg/hr) Max.Haul-off speed (m/min)
PEG63 Φ20-63 SJ65/33 220 15
PEG110 Φ20-110 SJ65/33 220 15
PEG160 Φ50-160 SJ75/33 400 12
PEG250 Φ75-250 SJ75/33 400 10
PEG315 Φ90-315 SJ90/33 500 8
PEG450 Φ110-450 SJ90/33 500 5
PEG630 Φ280-630 SJ120/33 850 3.3
PEG800 Φ400-800 SJ120/33 1000 1.8
PEG1200 Φ800-1200 SJ150/33 1300 0.8

38D Series High Efficient Production Line:
Model OD (mm) Extruder Max. Output (kg/hr) Max.Haul-off speed (m/min)
HPEG63 Φ20-63 HSJ60/38 320 30
HPEG110 Φ20-110 HSJ60/38 380 25
HPEG160 Φ50-160 HSJ60/38 460 15
HPEG250 Φ75-250 HSJ75/38 600 12
HPEG315 Φ90-315 HSJ75/38 650 10
HPEG450 Φ110-450 HSJ90/38 800 8
HPEG630 Φ280-630 HSJ90/38 950 5
HPEG800 Φ400-800 HSJ120/38 1300 2.5
HPEG1200 Φ800-1200 HSJ75/38
HSJ90/38
1400 1.2
HPEG1600 Φ1000-1600 HSJ90/38
HSJ90/38
1600 0.7



Tech Features & Advantages



  • We offer optimum spiral bush, which highly improves the capacity of extruder
  • We offer unique screw design to ensure better plasticization of raw material
  • We offer high torque and precisely designed gearbox to guarantee stable running of machinery
  • We offer accurate temperature controlling system to optimize best the material melting performance
  • We offer automatic water temperature and water level control of the vacuum and cooling tanks with large filters
  • We offer 2-12 caterpillars of haul-off with servo motor control
  • We offer SIEMENS most advanced PLC control to ensure the whole line to have best synchronization.



Technology Process

- High performance Extruder, which is the key important part in the whole production line, it ensure high capacity, high efficiency and excellent plasticization

5m/Min SJ90/33 PVC Pipe Extrusion Line 110-450mm PPR 0



- Mould

Material: 40Cr

Design: Spiral or Basket

Single layer or Multi-layer design

5m/Min SJ90/33 PVC Pipe Extrusion Line 110-450mm PPR 1

- Vacuum tank

Material: SUS304, 5mm-7mm

Automatic water temperature and level control technology

Accurate calibration

5m/Min SJ90/33 PVC Pipe Extrusion Line 110-450mm PPR 2

- Cooling tank

Material: SUS304, 3mm-5mm

Fast cooling

5m/Min SJ90/33 PVC Pipe Extrusion Line 110-450mm PPR 3

- Haul-off

Drive: by frequency inverter to servo motor driving

High quality rubber belts or blocks

With encoder for pipe metering



- No-dust cutter

Design: Universal or Cast Aluminum fixture unit

No-dust smooth cutting

Servo motor synchronization control



- Stacker

Pneumatic discharging

Automatic pipe arranging
