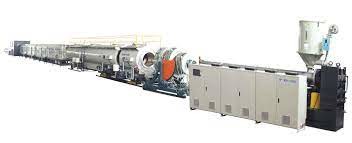

400 Kg/Hr HDPE Pipe Extrusion Machine
1 set
MOQ
Negotiable
Price
large.img.alt
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: YILI
Certification: CE ISO
Model Number: 16-1600mm High speed HDPE pipe Extrusion line
High Light:

400 Kg/Hr HDPE Pipe Extrusion Machine

,

SJ75/33 HDPE Pipe Extrusion Machine

,

50mm hdpe pipe extruder

Payment & Shipping Terms
Packaging Details: Film package
Delivery Time: 30 days
Payment Terms: T/T, Western Union
Supply Ability: 30 sets per month
Specifications
Application: PIPE
Plastic Processed: PE, PP, HDPE, HDPE/PP, PE/PP, LDPE
Usage: Water Supply, Water Sewage, Gas Supply And House Water
Raw Materials: PE ( Polyethylene) / HDPE / LDPE/PPR/PERT
Type: Acemech Standard Or Customized
Motor: SIEMENS PLC Control
Product Description

16-1600mm High speed HDPE pipe Extrusion line



Introduction



HDPE Pipe Extrusion Machine is widely used in the whole country water supply, water sewage, gas supply and house water supply project. It includes HDPE Plastic pipe extrusion machine, LDPE Plastic pipe extrusion machines, PPR/PERT Pipe extrusion lines, ect. YILI machinery adopts European most advance technology and develops with its own technical Strategy to ensure unique structure, high configuration, highly automation, easy operation of the whole pipe extrusion machine.

The whole line adopts PLC control system and large liquid crystal screen, which makes the operation very convenient. The line can be equipped with another extruder used for extruding the mark line.



Technical Specification

33D Series Classical Production Line:
Model OD (mm) Extruder Max. Output (kg/hr) Max.Haul-off speed (m/min)
PEG63 Φ20-63 SJ65/33 220 15
PEG110 Φ20-110 SJ65/33 220 15
PEG160 Φ50-160 SJ75/33 400 12
PEG250 Φ75-250 SJ75/33 400 10
PEG315 Φ90-315 SJ90/33 500 8
PEG450 Φ110-450 SJ90/33 500 5
PEG630 Φ280-630 SJ120/33 850 3.3
PEG800 Φ400-800 SJ120/33 1000 1.8
PEG1200 Φ800-1200 SJ150/33 1300 0.8

38D Series High Efficient Production Line:
Model OD (mm) Extruder Max. Output (kg/hr) Max.Haul-off speed (m/min)
HPEG63 Φ20-63 HSJ60/38 320 30
HPEG110 Φ20-110 HSJ60/38 380 25
HPEG160 Φ50-160 HSJ60/38 460 15
HPEG250 Φ75-250 HSJ75/38 600 12
HPEG315 Φ90-315 HSJ75/38 650 10
HPEG450 Φ110-450 HSJ90/38 800 8
HPEG630 Φ280-630 HSJ90/38 950 5
HPEG800 Φ400-800 HSJ120/38 1300 2.5
HPEG1200 Φ800-1200 HSJ75/38
HSJ90/38
1400 1.2
HPEG1600 Φ1000-1600 HSJ90/38
HSJ90/38
1600 0.7



Tech Features & Advantages



  • We offer optimum spiral bush, which highly improves the capacity of extruder
  • We offer unique screw design to ensure better plasticization of raw material
  • We offer high torque and precisely designed gearbox to guarantee stable running of machinery
  • We offer accurate temperature controlling system to optimize best the material melting performance
  • We offer automatic water temperature and water level control of the vacuum and cooling tanks with large filters
  • We offer 2-12 caterpillars of haul-off with servo motor control
  • We offer SIEMENS most advanced PLC control to ensure the whole line to have best synchronization.



Technology Process

- High performance Extruder, which is the key important part in the whole production line, it ensure high capacity, high efficiency and excellent plasticization

400 Kg/Hr HDPE Pipe Extrusion Machine 0



- Mould

Material: 40Cr

Design: Spiral or Basket

Single layer or Multi-layer design

400 Kg/Hr HDPE Pipe Extrusion Machine 1

- Vacuum tank

Material: SUS304, 5mm-7mm

Automatic water temperature and level control technology

Accurate calibration

400 Kg/Hr HDPE Pipe Extrusion Machine 2

- Cooling tank

Material: SUS304, 3mm-5mm

Fast cooling

400 Kg/Hr HDPE Pipe Extrusion Machine 3

- Haul-off

Drive: by frequency inverter to servo motor driving

High quality rubber belts or blocks

With encoder for pipe metering



- No-dust cutter

Design: Universal or Cast Aluminum fixture unit

No-dust smooth cutting

Servo motor synchronization control



- Stacker

Pneumatic discharging

Automatic pipe arranging
